A Complete Guide to Hyperbaric Oxygen Chamber Installation: Requirements, Steps, Safety & Common Pitfalls

This comprehensive guide covers every aspect of hyperbaric oxygen chamber installation, from pre-installation site preparation and environmental requirements to step-by-step assembly, electrical and ventilation setup, safety compliance, post-installation debugging, and common pitfalls to avoid.

We reference global standards from the National Fire Protection Association (NFPA), Occupational Safety and Health Administration (OSHA), UHMS, and the International Compressed Gas Association (IGC)—ensuring the information is authoritative, actionable, and applicable to both soft-shell civilian chambers and hard-shell medical chambers.

Whether you are installing a single-person home cabin, a commercial clinic system, or a multi-person medical chamber, this guide will help you achieve a safe, efficient, and long-lasting installation.

The key takeaway: installation is as important as the chamber itself. Even the highest-quality hyperbaric chamber will underperform or become unsafe if installed incorrectly.

By following the guidelines in this article, you can avoid costly mistakes, ensure compliance with global safety standards, and maximize the performance and lifespan of your hyperbaric oxygen system.

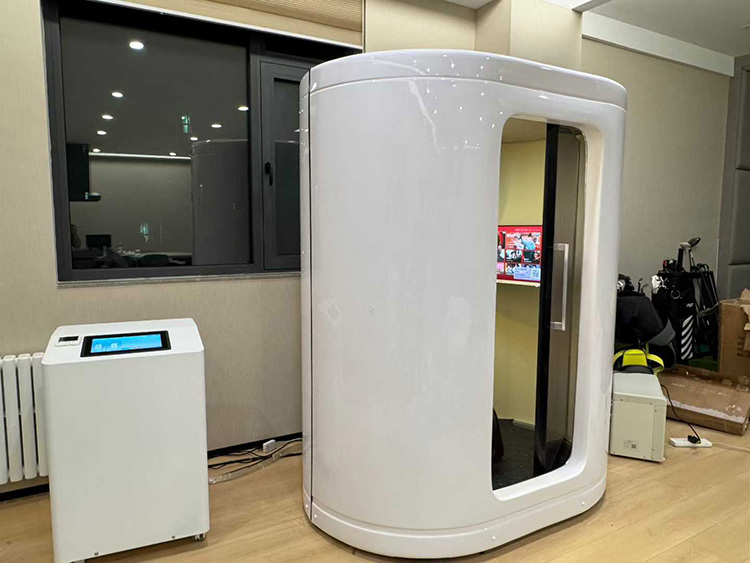

1.1 Pre-Installation Preparation: Site Selection & Environmental Requirements

Pre-installation preparation is the foundation of a successful hyperbaric chamber installation.

The site you choose and its environmental conditions directly impact the chamber’s performance, safety, and user comfort. Rushing this step or cutting corners will lead to irreversible issues later.

Below are the critical requirements for site selection and environmental preparation.

1.1.1 Site Location & Peripheral Safety

Hyperbaric chambers operate in high-oxygen environments, which increases the risk of fire if exposed to open flames, high temperatures, or electrical sparks.

As such, the installation site must meet strict safety isolation requirements:

• Distance from fire sources:




  The installation room must be at least 10 meters (33 feet) away from open flame sources, high-temperature equipment (e.g., boilers, heaters), flammable/explosive material storage (e.g., fuel, chemicals), kitchens, and high-voltage power distribution rooms.







  This complies with NFPA 99 standards for hyperbaric facility safety.

• Electromagnetic interference (EMI) avoidance:
















  Avoid sites near large transformers, radio transmission towers, or heavy industrial equipment.

  Strong EMI can disrupt the chamber’s pressure control system, oxygen concentrator, and monitoring instruments—causing pressure fluctuations, instrument failure, and automatic shutdowns.

• Humidity and dust control:




  The site must be dry, well-ventilated, and free from excessive dust.




  Avoid basements, low-lying areas, or spaces prone to water seepage—high humidity (above 65%) accelerates corrosion of metal components, damages electronic circuits, and degrades cabin fabric.







  Excessive dust clogs oxygen filters, reduces concentrator efficiency, and shortens component lifespan.

• Emergency access:










  The installation room must have unobstructed emergency evacuation routes leading to an outdoor safe area. Avoid narrow spaces, crowded corridors, or rooms with only one exit—this ensures quick evacuation in case of an emergency (e.g., fire, equipment malfunction).

1.1.2 Indoor Space, Height & Load-Bearing Requirements

Different types of hyperbaric chambers have specific space, height, and load-bearing requirements. Below are the standards for the most common types:

Single-Person Soft-Shell Chambers (Civilian/Commercial Use)

• Indoor net height:

  Minimum 3.5 meters (11.5 feet). This provides enough space for the cabin to inflate fully, for overhead pipeline installation, and for daily operation (e.g., opening/closing the cabin, maintenance). Insufficient height can cause the cabin to rub against the ceiling, damaging the airtight seal and reducing pressure stability.

• Floor load-bearing:

  Minimum 800 kg per square meter (164 lbs per square foot). A complete hyperbaric system (cabin, oxygen concentrator, control unit, auxiliary equipment) weighs 800–1,200 kg—requiring a solid concrete floor. Avoid lightweight wood floors, suspended floors, or uneven surfaces, which can cause settlement, tilt, or equipment damage.

• Peripheral space:

  A minimum 0.9 meters (3 feet) of clear space around all sides of the cabin. This ensures easy access for users, maintenance personnel, and emergency evacuation. It also prevents the cabin from touching walls or obstacles, which can block heat dissipation and ventilation.

• Room size:

  Minimum 15 square meters (161 square feet) for a single-person system. This accommodates the cabin, oxygen concentrator, control unit, and storage space for accessories.

Multi-Person Hard-Shell Medical Chambers

These chambers require dedicated, large-scale facilities complying with medical facility standards (three-zone two-channel design: clean area, semi-clean area, polluted area; dedicated patient and equipment passages). Additional requirements include:

• Minimum room size: 50+ square meters (538+ square feet) for a 4–6 person chamber.

• Floor load-bearing: 1,500+ kg per square meter (307+ lbs per square foot) due to the heavy hard-shell structure.

• Ceiling height: Minimum 4.0 meters (13.1 feet) to accommodate the chamber’s height and ventilation systems.

1.1.3 Temperature & Humidity Control

Stable temperature and humidity are critical for equipment performance and user comfort. The installation room must maintain:

• Temperature:

  18–26°C (64–79°F). Extreme temperatures (below 15°C or above 30°C) reduce oxygen concentrator efficiency, damage cabin fabric, and cause discomfort for users during sessions.

• Humidity:

  40–65%. High humidity (above 65%) causes condensation inside the cabin, corrosion of metal components, and mold growth. Low humidity (below 40%) dries out cabin fabric and causes user discomfort (e.g., dry skin, nasal irritation).

• Sunlight protection:

  Avoid direct sunlight on the cabin, as it accelerates fabric aging, fades colors, and reduces airtightness. Use curtains or blinds if the room has large windows.

1.2 Electrical System Installation: Dedicated Circuits & Safety Compliance

Hyperbaric oxygen systems require a dedicated, stable electrical supply to operate safely and efficiently.

The system includes the control unit, oxygen concentrator, air compressor, monitoring instruments, exhaust fan, and emergency lighting—all of which draw significant power.

Using shared circuits or improper wiring can cause voltage fluctuations, electrical sparks, equipment failure, and even fire hazards in oxygen-enriched environments.

Below are the strict electrical installation standards, compliant with OSHA and NFPA guidelines.

1.2.1 Dedicated Circuit Requirements

The hyperbaric system must have an independent dedicated circuit, completely separate from other electrical equipment (e.g., air conditioners, lighting, refrigerators).

This prevents voltage drops and overloads that can damage sensitive components. Key specifications:

• Circuit capacity: 20 Ampere (A) independent loop. This is sufficient to power all system components without overload.

• Leakage protection: A Ground Fault Circuit Interrupter (GFCI) must be installed at the power inlet. The GFCI instantly cuts off power if it detects current leakage—eliminating electric shock and spark risks in high-oxygen environments.

• Voltage stability: The circuit must provide stable voltage (±5% of the rated voltage). Voltage fluctuations can damage the oxygen concentrator’s compressor and the control unit’s circuit board. A voltage stabilizer is recommended in areas with unstable power supply.

1.2.2 Grounding & Static Protection

Static electricity is a major fire hazard in oxygen-enriched environments. All metal components of the hyperbaric system must be properly grounded:

• Protective grounding: Connect the metal shells of the control unit, oxygen concentrator, air compressor, and metal pipelines to a standardized grounding wire (minimum 2.5 mm² copper wire). This eliminates static buildup and prevents sparks.

• Grounding resistance: The grounding resistance must be ≤4 ohms. This ensures effective static discharge and electrical safety.

1.2.3 Wiring & Cable Specifications

Wiring must be neat, concealed, and compliant with electrical safety standards:

• Cable selection: Use high-temperature resistant, insulated thickened cables (minimum 4 mm² copper wire) matching the system’s total power. This prevents overheating and short circuits.

• Concealed wiring: All exposed wiring must be protected by insulated trunking to avoid friction, aging, or damage. Prohibit temporary wiring, extension cords, or multi-plug adapters—these are fire hazards.

• Emergency power-off: Install a prominent emergency stop button outside the installation room, connected to the main power supply. This allows one-button shutdown of all equipment in case of emergency.

1.2.4 Pre-Installation Electrical Testing

Before connecting the system, perform the following tests to ensure electrical safety:

• Test GFCI functionality (simulate leakage to confirm it cuts off power).

• Check grounding resistance (ensure it is ≤4 ohms).

• Test voltage stability under full load (run all components simultaneously to check for fluctuations)

• Inspect all wiring for loose connections, exposed wires, or damage.

1.3 Oxygen Supply System Installation: Pipes, Sealing & Safety

The oxygen supply system is the core of the hyperbaric chamber, connecting the oxygen concentrator (or oxygen cylinder) to the cabin. Improper installation of pipes, fittings, or valves can cause oxygen leaks, pressure loss, and safety hazards.

Below are the standards for oxygen supply system installation, compliant with the International Compressed Gas Association (IGC) and UHMS guidelines.

1.3.1 Pipe Material Selection

Oxygen delivery pipes must be made of oxygen-resistant materials to prevent corrosion, contamination, and gas leakage. Recommended materials:

• High-pressure polyurethane pipes: Ideal for soft-shell chambers (working pressure ≤2.0 ATA). They are flexible, lightweight, and resistant to oxygen corrosion.

• Stainless steel pipes: Required for hard-shell medical chambers (working pressure ≥2.0 ATA). They are durable, high-pressure resistant, and easy to clean.

Prohibit ordinary rubber or plastic pipes—these are prone to aging, cracking, and shedding particles that can contaminate the oxygen supply and block valves.

1.3.2 Pipe Connection & Sealing Standards

All pipe connections must be airtight to prevent oxygen leaks. Follow these steps for proper connection:

1. Install dedicated high-pressure sealing gaskets (made of nitrile rubber or fluorine rubber) at all connection points (oxygen concentrator outlet, cabin inlet, valve fittings).

2. Tighten threaded connections with a torque wrench to the manufacturer’s specified torque (typically 25–30 N·m). Over-tightening can crack fittings; under-tightening causes leaks.

3. After connection, perform a preliminary airtightness test: pressurize the pipe to 1.2 times the maximum working pressure and hold for 30 minutes. Check for leaks using soapy water—bubbles indicate a leak that must be fixed.




1.3.3 Valve & Filter Installation

Key components to install in the oxygen supply system:

• One-way check valve:

  Installed on the main oxygen pipe to prevent backflow of cabin air into the oxygen concentrator or cylinder. Backflow can damage precision components and cause pressure disorders.

• Precision filter:

  Install a 10-micron particle filter at the inlet of the pressure regulator. This blocks dust, debris, and oil particles from entering the system—preventing valve blockage and component wear.

• Pressure relief valve:

  Install a pressure relief valve on the oxygen supply pipe (set to 1.2 times the maximum working pressure). This releases excess pressure in case of over-pressurization, protecting the system from damage.

1.3.4 Pipe Layout Guidelines

Pipe layout must be rational to ensure smooth oxygen flow and easy maintenance:

• Arrange pipes overhead or along walls, avoiding ground traffic, sharp bends, or kinks. Sharp bends can reduce oxygen flow and cause pressure loss.

• Maintain a minimum bend radius of 10 times the pipe diameter (e.g., 50 mm radius for 5 mm pipes) to prevent pipe flattening.

• Secure pipes with brackets every 1–1.5 meters to prevent vibration and wear.




1.4 Ventilation & Exhaust System: Preventing Oxygen Enrichment

Oxygen enrichment (ambient oxygen concentration above 23.5%) is a major safety hazard—oxygen supports combustion, and even a small spark can cause a fire.

A properly designed ventilation and exhaust system is mandatory to maintain safe oxygen levels in the installation room. Below are the requirements, compliant with NFPA 99 and OSHA standards.

1.4.1 Mechanical Exhaust System

Install a dedicated mechanical exhaust fan connected to the outdoors. Key specifications:

• Exhaust flow rate: Minimum 10 CFM (cubic feet per minute) per square meter of room area. This ensures that residual oxygen, cabin exhaust, and humid air are continuously discharged.

• Exhaust outlet: Must lead directly to the outdoors (not into an attic, basement, or adjacent room). This prevents oxygen buildup in enclosed spaces.

• Continuous operation: The exhaust fan must run continuously during chamber operation and for 30 minutes after each session to ensure complete oxygen discharge.

1.4.2 Air Circulation & Oxygen Monitoring

• Natural ventilation: Supplement mechanical exhaust with natural ventilation (e.g., windows, vents) to maintain air exchange. Avoid fully sealed rooms.

• Oxygen concentration monitor: Install a calibrated oxygen concentration alarm in the center of the room. The alarm should trigger an audible and visual warning if oxygen concentration exceeds 23.5%—allowing immediate action to reduce risk.

• Carbon monoxide (CO) monitor: Install a CO alarm, as oxygen concentrators and air compressors may produce trace CO during operation. The alarm should trigger if CO concentration exceeds 35 ppm (parts per million).

1.5 Fire Safety Measures: Compliance & Protection

High-oxygen environments require strict fire safety measures to prevent combustion.

Below are the mandatory fire protection requirements for hyperbaric chamber installations, compliant with NFPA 99 and local fire codes.

1.5.1 Fire Extinguisher Configuration

Install Class ABC fire extinguishers within 9 meters (30 feet) of the chamber.

Class ABC extinguishers are effective against electrical fires, ordinary combustible fires (e.g., fabric, wood), and oil-based fires—covering all potential fire hazards in the installation room.

Ensure extinguishers are accessible, visible, and regularly inspected (monthly checks, annual maintenance).

1.5.2 Cabin Fabric & Material Safety

Soft-shell cabin fabrics must meet UL-94 V-0 flame retardant standards—the highest non-flammable rating for flexible materials.

This means the fabric self-extinguishes within 10 seconds of removing the flame, with no molten dripping or flame spread.

Avoid cabins with non-flame-retardant fabrics, as they pose a severe fire risk.

1.5.3 Fire Prohibition & Signage

• Post permanent “No Open Flames” signs in the installation room, prohibiting lighters, matches, combustible aerosols, and any ignition sources.

• Prohibit smoking, welding, or high-temperature work near the chamber at all times.

• Ensure all users and staff are trained on fire safety protocols, including emergency evacuation routes and fire extinguisher use.

1.6 Step-by-Step Installation Process for Soft-Shell Hyperbaric Chambers

Soft-shell chambers are the most common type for civilian and commercial use.

Below is a detailed, step-by-step guide to their installation—performed by professional technicians to ensure safety and efficacy.

1.6.1 Step 1: Unpacking & Component Inspection

1. Carefully unpack the chamber and all components, using a utility knife to cut packaging (avoid scratching the cabin fabric).

2. Verify all components against the manufacturer’s packing list: main cabin body, internal support frame, control unit, oxygen concentrator, oxygen pipes, sealing gaskets, pressure gauge, emergency relief valve, internal seat, power cables, and hardware (screws, brackets).

3. Inspect components for damage: check the cabin fabric for tears or holes, pipes for cracks, and equipment for dents or broken parts. If any damage is found, contact the manufacturer immediately for replacement.

1.6.2 Step 2: Assemble the Internal Support Frame

1. Lay the cabin body flat on the floor, ensuring the inner cavity is accessible.

2. Assemble the split support frame according to the manufacturer’s instructions. Use the provided hardware to lock all joints tightly—ensure the frame is stable, with no loose connections.

3. Place the assembled frame into the cabin’s inner cavity, centering it to ensure even weight distribution. Adjust the frame to match the cabin’s shape, avoiding tension on the fabric.




1.6.3 Step 3: Connect Oxygen Pipes & Sealing

1. Connect one end of the oxygen pipe to the oxygen concentrator’s outlet. Install a sealing gasket at the connection, then tighten the retaining ring with a torque wrench.

2. Connect the other end of the pipe to the cabin’s oxygen inlet. Again, install a sealing gasket and tighten the retaining ring.

3. Arrange the pipe along the wall or overhead, securing it with brackets. Ensure no kinks or sharp bends.

4. Perform a preliminary airtightness test: connect the oxygen concentrator, turn it on, and pressurize the pipe to 1.2 times the maximum working pressure. Check for leaks with soapy water—fix any leaks before proceeding.







1.6.4 Step 4: Electrical Connection & Grounding

1. Connect the control unit and oxygen concentrator to the dedicated GFCI circuit. Ensure all plugs are fully inserted.

2. Connect the grounding wire to the metal shells of the control unit, oxygen concentrator, and air compressor. Verify grounding resistance (≤4 ohms).

   Test the emergency stop button to ensure it shuts down all equipment.

1.6.5 Step 5: Cabin Setup & Functional Testing

1. Place the internal seat inside the cabin, adjusting it to a comfortable position.

2. Close the cabin’s double-layer airtight zipper completely, ensuring no gaps (this is critical for pressure stability).

3. Turn on the control unit and set the target pressure (e.g., 1.9 ATA). Start the automatic pressurization program.

4. Monitor the pressure gauge in real time: check for pressure fluctuations, air leaks (listen for hissing sounds), and proper operation of the oxygen concentrator.

5. Once the target pressure is reached, hold it for 30 minutes to test pressure stability. The pressure should remain within ±0.05 ATA.

6. Test the emergency relief valve: manually open it to ensure pressure drops quickly and safely.

16.6 Step 6: Post-Installation Acceptance

After completing the installation and testing, perform a final acceptance to ensure all standards are met:

• Verify pressure stability (no fluctuations beyond ±0.05 ATA).

• Confirm no oxygen leaks in pipes or cabin.

• Test all safety features (emergency stop, pressure relief valve, oxygen alarm).

• Ensure ventilation and exhaust systems are working properly.

• Train the user/staff on operation, maintenance, and emergency protocols.

1.7 Common Installation Pitfalls & How to Avoid Them

Even with careful planning, installation mistakes are common—especially with non-professional installers. Below are the most frequent pitfalls and their solutions:

Pitfall 1: Using Shared Circuits Instead of Dedicated Circuits

Problem: Shared circuits cause voltage fluctuations, leading to equipment failure and electrical sparks. Solution: Strictly install a 20A dedicated GFCI circuit, separate from all other electrical equipment. Test voltage stability before operation.

Pitfall 2: Insufficient Peripheral Space Around the Cabin

Problem: Cabin touching walls/obstacles blocks heat dissipation, ventilation, and maintenance access. Solution: Reserve a minimum 0.9 meters of clear space around all sides of the cabin. Avoid placing furniture or equipment near the cabin.

Pitfall 3: Poor Pipe Sealing Leading to Oxygen Leaks

Problem: Leaks reduce pressure stability, waste oxygen, and increase fire risk. Solution: Use dedicated sealing gaskets, tighten connections with a torque wrench, and perform a thorough airtightness test before use.

Pitfall 4: Inadequate Ventilation Causing Oxygen Enrichment

Problem: Oxygen buildup increases fire risk. Solution: Install a dedicated mechanical exhaust system with sufficient flow rate, run it continuously during operation, and install an oxygen concentration alarm.

Pitfall 5: Ignoring Grounding & Static Protection

Problem: Static sparks can ignite oxygen-enriched air. Solution: Properly ground all metal components, test grounding resistance, and avoid using non-conductive materials near the cabin.

1.8 Conclusion: Professional Installation Ensures Safety & Efficacy

Hyperbaric oxygen chamber installation is a complex, technical process that requires strict compliance with global safety standards and manufacturer guidelines.

Cutting corners, using non-professional installers, or ignoring environmental and electrical requirements can lead to equipment failure, safety hazards, and reduced therapeutic efficacy.

By following the steps and guidelines in this article—from pre-installation site preparation to post-installation testing—you can ensure a safe, efficient, and long-lasting installation.

Remember: the best hyperbaric chamber in the world will not deliver results if installed incorrectly.

Invest in professional installation, prioritize safety compliance, and follow the manufacturer’s instructions—this will maximize the performance of your system, protect users, and ensure a return on your investment.

Whether you are installing a home cabin or a commercial clinic system, proper installation is the key to unlocking the full benefits of HBOT.
